Simplifying a Colorized MACD Indicator with Companions

Hello everyone!

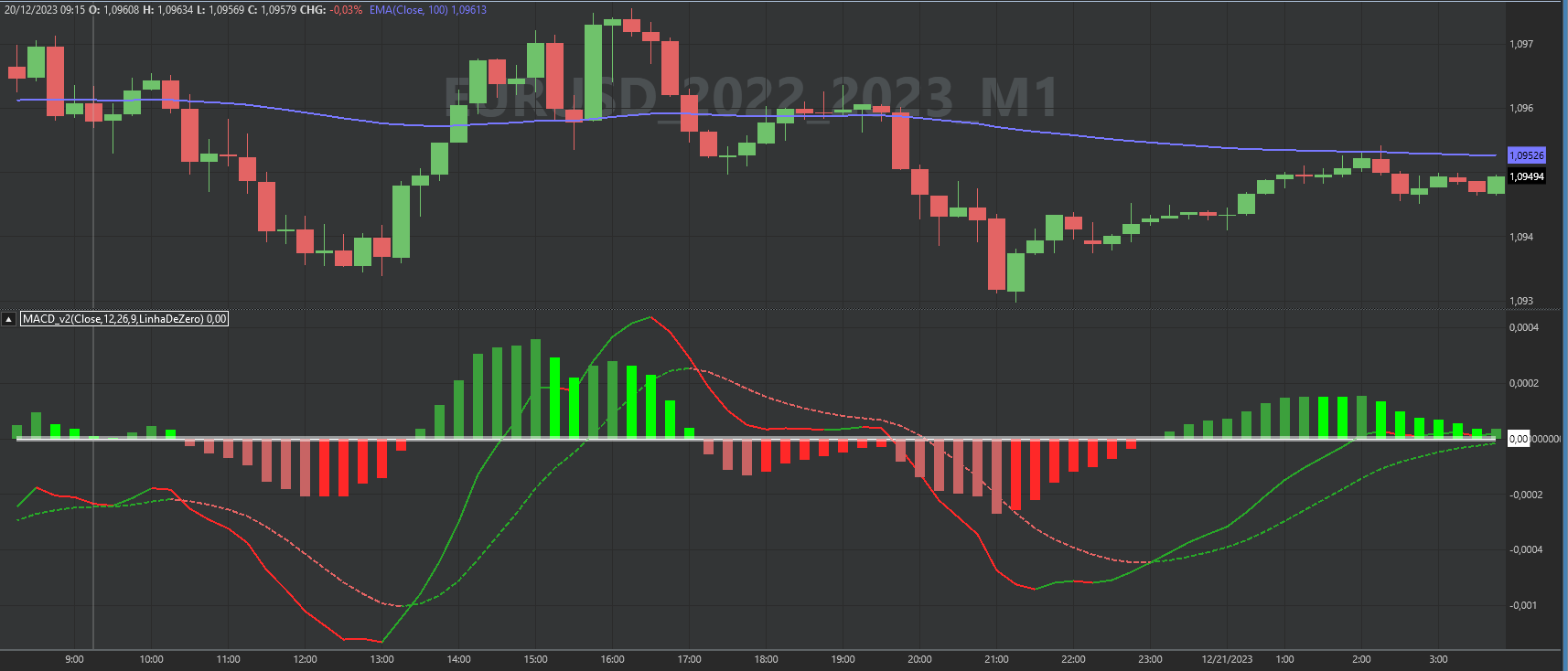

I'd like to share an indicator I've created and ask if there's a way to simplify it (aside from using a two-color histogram). Essentially, it's a colored MACD along with its companions.

CODE:

using WealthLab.Core;

namespace WealthLab.Indicators
{
    public class MACD_v2 : IndicatorBase
    {
        public override string Name => "MACD_v2";
        public override string Abbreviation => "MACD_v2";
        public override string HelpDescription =>
            "MACD with signal line, colors for rise and fall, and zero line.";
        public override string PaneTag => "MACD_v2";
        public override bool IsSmoother => false;
        public override PlotStyle DefaultPlotStyle
        {
            get { return PlotStyle.Histogram; }
        }

        public MACD_v2()
            : base() { }

        public MACD_v2(
            TimeSeries source,
            int shortPeriod,
            int longPeriod,
            int signalPeriod,
            OperatingMode operatingMode
        )
            : base()
        {
            Parameters[0].Value = source;
            Parameters[1].Value = shortPeriod;
            Parameters[2].Value = longPeriod;
            Parameters[3].Value = signalPeriod;
            Parameters[4].Value = operatingMode;
            Populate();
        }

        public static MACD_v2 Series(
            TimeSeries source,
            int shortPeriod,
            int longPeriod,
            int signalPeriod,
            OperatingMode operatingMode
        )
        {
            string key = CacheKey("VCMMACD", shortPeriod, longPeriod, signalPeriod, operatingMode);
            if (source.Cache.ContainsKey(key))
                return (MACD_v2)source.Cache[key];
            MACD_v2 macd = new MACD_v2(
                source,
                shortPeriod,
                longPeriod,
                signalPeriod,
                operatingMode
            );
            source.Cache[key] = macd;
            return macd;
        }

        public override void Populate()
        {
            var source = Parameters[0].AsTimeSeries;
            var shortPeriod = Parameters[1].AsInt;
            var longPeriod = Parameters[2].AsInt;
            var signalPeriod = Parameters[3].AsInt;
            var operatingMode = Enum.Parse<OperatingMode>(Parameters[4].AsString);
            if (shortPeriod <= 0 || longPeriod <= 0 || signalPeriod <= 0)
                return;
            if (shortPeriod > longPeriod)
                throw new Exception("Short period cannot be greater than long period.");
            DateTimes = source.DateTimes;
            //* Zero line
            if (operatingMode == OperatingMode.ZeroLine)
            {
                for (int n = 0; n < source.Count; n++)
                {
                    Values[n] = 0;
                }
                return;
            }
            //* MACD
            var macd = EMA.Series(source, shortPeriod) - EMA.Series(source, longPeriod);
            if (operatingMode == OperatingMode.MACDRise)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] = macd[n] >= macd[n - 1] ? macd[n] : double.NaN;
                    if (double.IsNaN(Values[n - 1]) && !double.IsNaN(Values[n]))
                    {
                        Values[n - 1] = macd[n - 1];
                    }
                }
                return;
            }
            if (operatingMode == OperatingMode.MACDFall)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] = macd[n] < macd[n - 1] ? macd[n] : double.NaN;
                    if (double.IsNaN(Values[n - 1]) && !double.IsNaN(Values[n]))
                    {
                        Values[n - 1] = macd[n - 1];
                    }
                }
                return;
            }
            //* Signal line
            var signalLine = EMA.Series(macd, signalPeriod);
            if (operatingMode == OperatingMode.SignalLineRise)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] = signalLine[n] >= signalLine[n - 1] ? signalLine[n] : double.NaN;
                    if (double.IsNaN(Values[n - 1]) && !double.IsNaN(Values[n]))
                    {
                        Values[n - 1] = signalLine[n - 1];
                    }
                }
                return;
            }
            if (operatingMode == OperatingMode.SignalLineFall)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] = signalLine[n] < signalLine[n - 1] ? signalLine[n] : double.NaN;
                    if (double.IsNaN(Values[n - 1]) && !double.IsNaN(Values[n]))
                    {
                        Values[n - 1] = signalLine[n - 1];
                    }
                }
                return;
            }
            //* Histogram
            var histogram = macd - signalLine;
            if (operatingMode == OperatingMode.HistogramPositiveRise)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] =
                        histogram[n] >= 0 && histogram[n] >= histogram[n - 1]
                            ? histogram[n]
                            : double.NaN;
                }
                return;
            }
            if (operatingMode == OperatingMode.HistogramPositiveFall)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] =
                        histogram[n] >= 0 && histogram[n] < histogram[n - 1]
                            ? histogram[n]
                            : double.NaN;
                }
                return;
            }
            if (operatingMode == OperatingMode.HistogramNegativeRise)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] =
                        histogram[n] < 0 && histogram[n] >= histogram[n - 1]
                            ? histogram[n]
                            : double.NaN;
                }
                return;
            }
            if (operatingMode == OperatingMode.HistogramNegativeFall)
            {
                for (int n = 1; n < source.Count; n++)
                {
                    Values[n] =
                        histogram[n] < 0 && histogram[n] < histogram[n - 1]
                            ? histogram[n]
                            : double.NaN;
                }
                return;
            }
        }

        public override bool CalculatePartialValue()
        {
            throw new NotImplementedException();
        }

        //generate parameters
        protected override void GenerateParameters()
        {
            AddParameter("Source", ParameterType.TimeSeries, PriceComponent.Close);
            AddParameter("Short period", ParameterType.Int32, 12);
            AddParameter("Long period", ParameterType.Int32, 26);
            AddParameter("Signal period", ParameterType.Int32, 9);
            AddParameter(
                "Operating mode",
                ParameterType.StringChoice,
                Enum.GetNames(typeof(OperatingMode))[0]
            ).Choices = Enum.GetNames(typeof(OperatingMode)).ToList();
        }
    }

    public enum OperatingMode
    {
        HistogramPositiveRise,
        HistogramPositiveFall,
        HistogramNegativeRise,
        HistogramNegativeFall,
        MACDRise,
        MACDFall,
        SignalLineRise,
        SignalLineFall,
        ZeroLine
    }
}

CODE:

private void PlotMACD(BarHistory bars, int shortPeriod, int longPeriod, int signalPeriod)
        {
            var macd_zeroLine = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.ZeroLine
            );
            PlotIndicatorLine(macd_zeroLine, WLColor.White, 1, LineStyle.Solid, false, "MACD_v2");
            var macd_macdRise = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.MACDRise
            );
            PlotIndicatorLine(macd_macdRise, WLColor.Green, 2, LineStyle.Solid, true, "MACD_v2");
            var macd_macdFall = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.MACDFall
            );
            PlotIndicatorLine(macd_macdFall, WLColor.Red, 2, LineStyle.Solid, true, "MACD_v2");
            var macd_signalLineRise = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.SignalLineRise
            );
            PlotIndicatorLine(
                macd_signalLineRise,
                new WLColor(0, 128, 0),
                2,
                LineStyle.Dashed,
                true,
                "MACD_v2"
            );
            var macd_signalLineFall = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.SignalLineFall
            );
            PlotIndicatorLine(
                macd_signalLineFall,
                new WLColor(128, 0, 0),
                2,
                LineStyle.Dashed,
                true,
                "MACD_v2"
            );
            var macd_histogramPositiveRise = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.HistogramPositiveRise
            );
            PlotIndicator(
                macd_histogramPositiveRise,
                new WLColor(0, 100, 0),
                PlotStyle.Histogram,
                true,
                "MACD_v2"
            );
            var macd_histogramPositiveFall = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.HistogramPositiveFall
            );
            PlotIndicator(
                macd_histogramPositiveFall,
                new WLColor(0, 255, 0),
                PlotStyle.Histogram,
                true,
                "MACD_v2"
            );
            var macd_histogramNegativeRise = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.HistogramNegativeRise
            );
            PlotIndicator(
                macd_histogramNegativeRise,
                new WLColor(255, 0, 0),
                PlotStyle.Histogram,
                true,
                "MACD_v2"
            );
            var macd_histogramNegativeFall = MACD_v2.Series(
                bars.Close,
                shortPeriod,
                longPeriod,
                signalPeriod,
                OperatingMode.HistogramNegativeFall
            );
            PlotIndicator(
                macd_histogramNegativeFall,
                new WLColor(100, 0, 0),
                PlotStyle.Histogram,
                true,
                "MACD_v2"
            );
        }
    }

104

Solved

2 Replies

Bookmark

Notify

Sort

Glitch8

( 12.72% )

2024-03-14T15:02:36Z - 2024-03-14T15:02:36Z ago

You can actually use SeriesBarColors in a custom indicator to set specific colors, here's an example of a MACD that gives each bar a random color.

CODE:

using WealthLab.Core;
using System;
using System.Drawing;
using WealthLab.Indicators;

namespace WealthLab.MyIndicators
{
    public class MACDColor : IndicatorBase
    {
        //parameterless constructor
        public MACDColor() : base()
        {
        }

        //for code based construction
        public MACDColor(TimeSeries source)
            : base()
        {
         Parameters[0].Value = source;

            Populate();
        }

      //static Series method
      public static MACDColor Series(TimeSeries source)
      {
         return new MACDColor(source);
      }

        //name
        public override string Name
        {
            get
            {
                return "MACDColor";
            }
        }

        //abbreviation
        public override string Abbreviation
        {
            get
            {
                return "MACDColor";
            }
        }

        //description
        public override string HelpDescription
        {
            get
            {
                return "";
            }
        }

        //price pane
        public override string PaneTag
        {
            get
            {
                return "MACD";
            }
        }

      //default color
      public override WLColor DefaultColor
      {
         get
         {
            return WLColor.FromArgb(255,0,0,255);
         }
      }

      //default plot style
      public override PlotStyle DefaultPlotStyle
      {
         get
         {
            return PlotStyle.Histogram;
         }
      }

        //populate
        public override void Populate()
        {
         TimeSeries source = Parameters[0].AsTimeSeries;
            DateTimes = source.DateTimes;
         SeriesBarColors = new DateSynchedList<WLColor>(source.DateTimes, WLColor.Empty);
         RandomColorGenerator rg = new RandomColorGenerator();

         //modify the code below to implement your own indicator calculation
            for (int n = 0; n < source.Count; n++)
         {
                Values[n] = source[n];
            SeriesBarColors[n] = rg.NextColor;
         }
        }

        //generate parameters
        protected override void GenerateParameters()
        {
         AddParameter("Source", ParameterType.TimeSeries, PriceComponent.Close);

        }
    }
}

Best Answer

vcortescunha8

2024-03-14T16:07:30Z - 2024-03-14T16:07:30Z ago

Thank you very much! I was wondering how to use SeriesBarColors. 🙏🙂
